Manual Adjustable Ground Mount Solution

Manual Adjustable Ground Mount Solution is suitable for large scale solar power station.
  • Item No.:

    FA-GM-02
  • Product origin:

    Fujian,China
  • Brand:

    FOEN
  • Color:

    As your Demand
  • Product Details

Details & Benefits

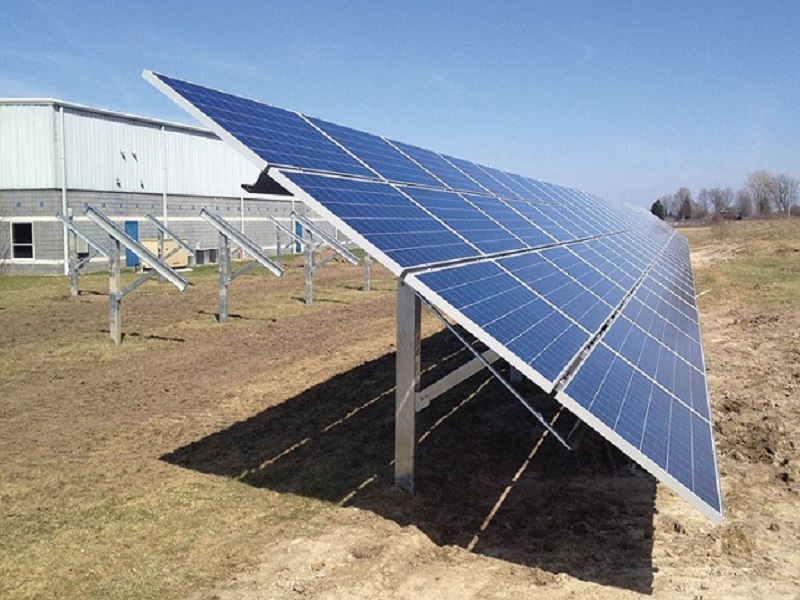

FOEN Manual Adjustable Ground Mount Solution

FOEN Manual Adjustable Ground Mount Solution is suitable for large scale solar power station with galvanized steel post which has perfect corrosion resistance ability as fixed foundation. Unique designed manual adjustable joint in four directions delivers an easier installation and maximizes the power generation.



solar energy companies



Material
   AL 6005-T5/SUS304/Q235B
Surface Treatment

   Average Anodizing Coating Thickness≥ 12μm Average

   Hot-galvanized Coating Thickness≥ 65μm

Panel Type
   Framed & Frameless
Wind Load
   ≤60m/s
Snow Load
   1.4KN/m2
 Panel Orientation
   Landscape/Portrait
 Tilt Angle
   0°~60°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  10years quality warranty, 25years life span warranty

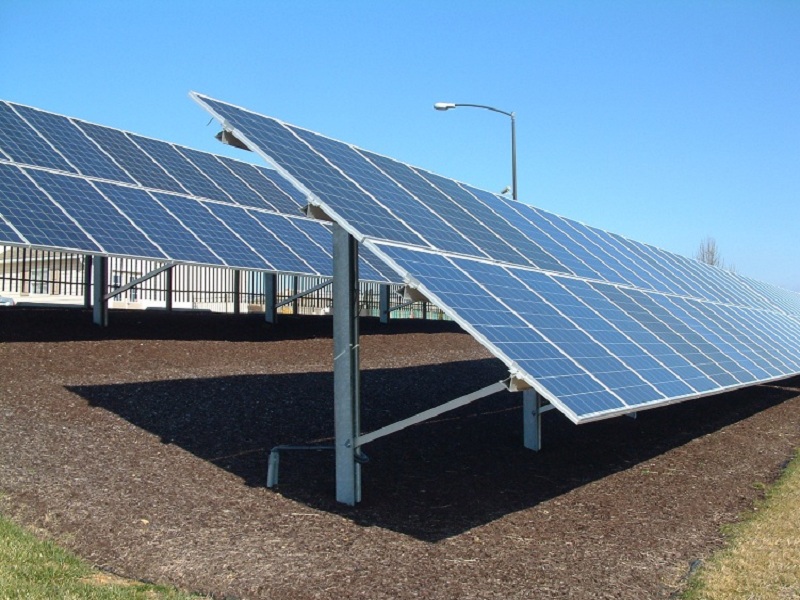

pile driven mounting mounting system


System Overview








Highly pre-assembled before shipment, save your onsite labor cost


Check and test Structure strictly for the use in extreme weather and geographical conditions.


With the use of east-west adjustable joint, the whole solution can be adjusted in four directions to meet customer needs, making the solution being compatible under certain construction tolerances.

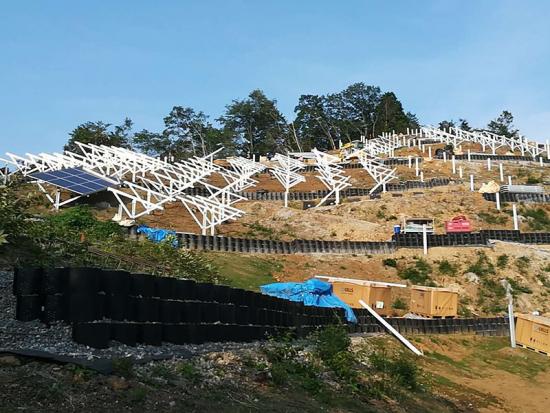

ground mounting system installation procedure

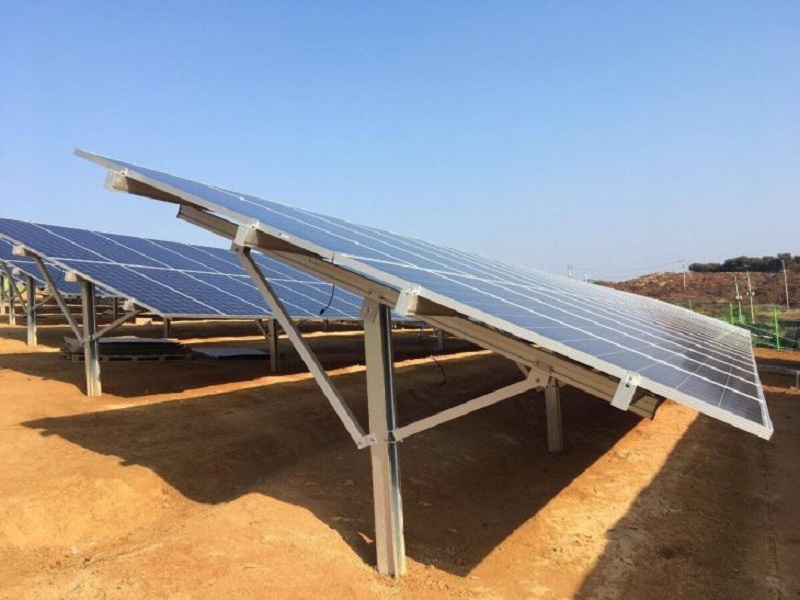

solar plant installation steps
