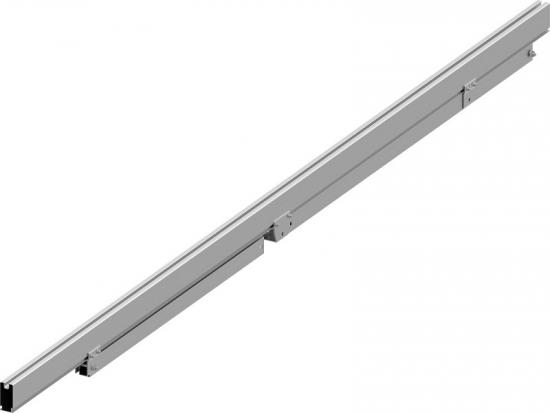

Ground Mounting System Pre-Assembled A Support

Ground Solar Pre-assembled A Support is anchored with T joint & post joint on the pile, and then hold the panel rails. Its double-triangle structure solar system improves stability.
  • Item No.:

    FA-PA-02
  • Product origin:

    Fujian,China
  • Color:

    As your demand
  • Shipping port:

    Jiangyin Port
  • Lead Time:

    15DAYS
  • Brand:

    FOEN
  • Product Details

Details & Benefits

GM2 Pre-assembled Support



easy for solar system installation





Material
   AL 6005-T5/SUS304
Surface Treatment

   Average Anodizing Coating Thickness≥ 12μm Average

Panel Type
   Framed & Frameless
Wind Load
   ≤60m/s
Snow Load
   1.4KN/m2
 Panel Orientation
   Landscape/Portrait
 Tilt Angle
   0°~60°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty







Highly pre-assembled before shipment, save your onsite labor cost.


Can be well used on ground, flat roof and pitched roof.


Check and test Structure strictly for the use in extreme weather and geographical conditions.


15 years' warranty, 25 years' life span.
