Roof Ballasted Solar Panel Racking Structure

Roof Ballasted Solar Panel Racking Structure is specially designed for RC Flat roof projects. It is an adjustable Green Energy Power Station that provides a whole building's Power need.
  • Product origin:

    Fujian,China
  • Color:

    As your demand
  • Shipping port:

    Jiangyin Port
  • Lead Time:

    15DAYS
  • Brand:

    FOEN
  • Product Details
Details & Benefits

Roof Ballasted Solar Panel Racking Structure

Roof Ballasted Solar Panel Racking Structure is specially designed for RC Flat roof projects. It is an adjustable Green Energy Power Station that provides a whole building's Power need.



flat roof solar racking structures




Material
   AL 6005-T5/SUS304
Surface Treatment

   Average Anodizing Coating Thickness≥ 12μm Average

Panel Type
   Framed & Frameless
Wind Load
   ≤60m/s
Snow Load
   0.45KN/m2
 Panel Orientation
   Landscape
 Tilt Angle
   5°~30°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  10years quality warranty, 25years life span warranty





flat roof ballasted solar racking


System Overview




ballasted roof system




Highly pre-assembled before shipment, save your onsite labor cost


Can be well used on ground, flat roof


Check and test Structure strictly for the use in extreme weather and geographical conditions.

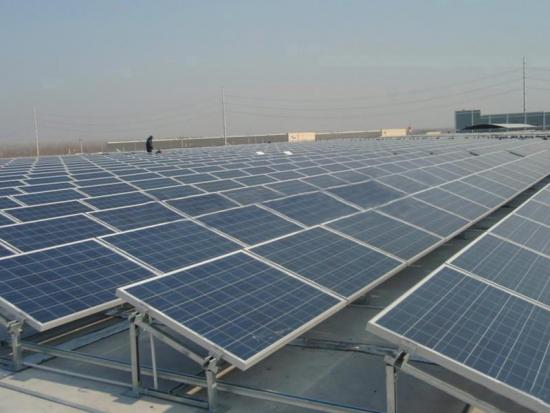

flat roof mounting installation
