Carport Mounting System Bracket

Carport Mounting System Bracket serves as a charging station for electrical vehicle while develop a renewable energy.
  • Item No.:

    FA-CP-01
  • Product origin:

    Fujian,China
  • Lead Time:

    15 days
  • Tilt Angle:

    0°~20°
  • Foundation:

    Concrete Base & Ground Screw
  • Installation Site:

    Ground & Flat Roof
  • Panel Type:

    Framed & Frameless
  • HS Code:

    76109000
  • Product Details

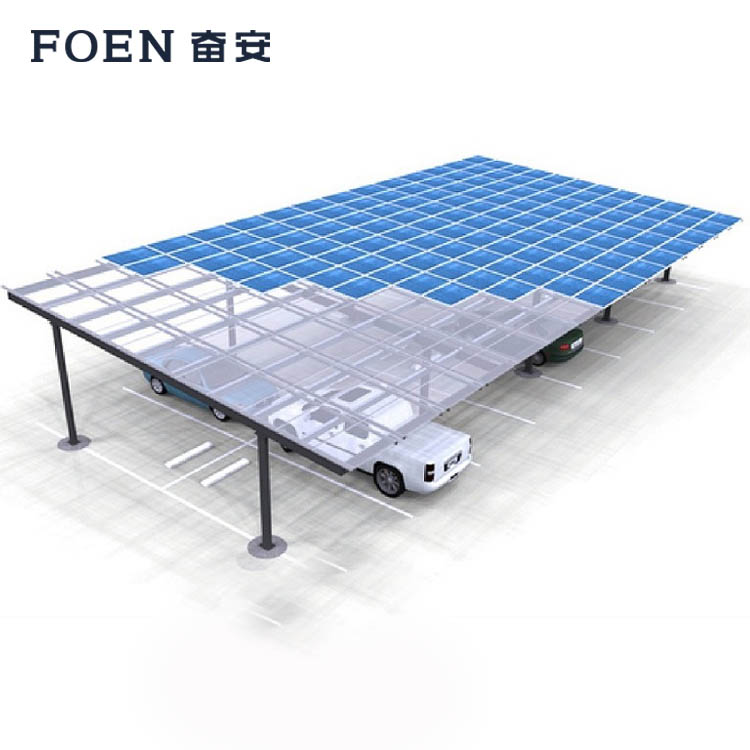

Carport Mounting System Bracket


Carport Mounting System Bracket serves as a charging station for electrical vehicle while develop a renewable energy.


Material
   AL 6005-T5/SUS304/Q235B
Surface Treatment

   Average Anodizing Coating Thickness≥ 12μm Average

   Hot-galvanized Coating Thickness≥ 65μm

Panel Type
   Framed & Frameless
Wind Load
   ≤60m/s
Snow Load
   1.4KN/m2
 Panel Orientation
   Landscape/Portrait
 Tilt Angle
   0°~20°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty

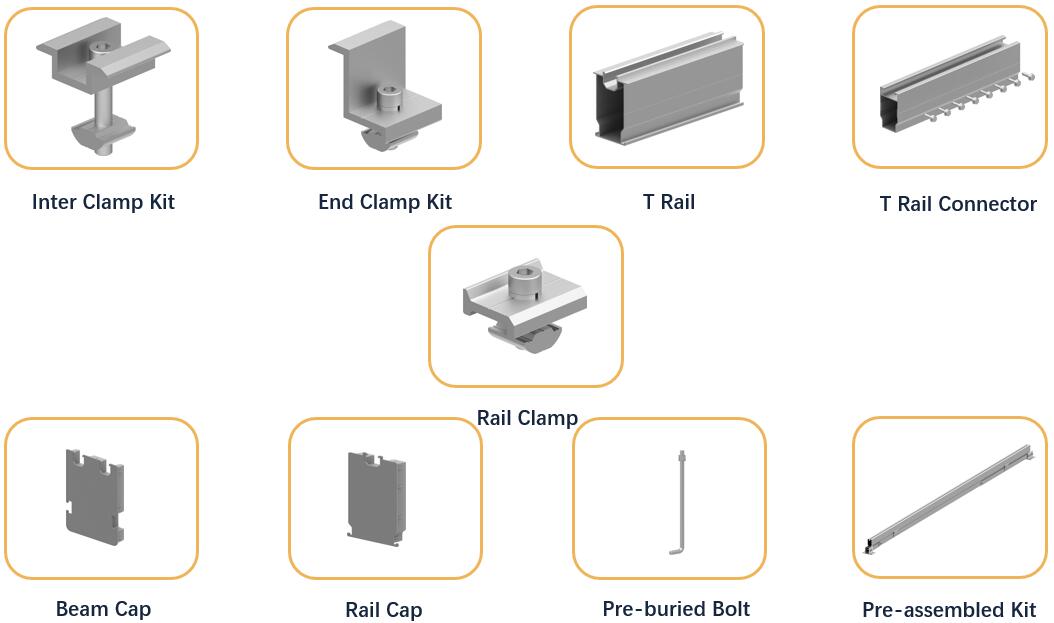

 Component List

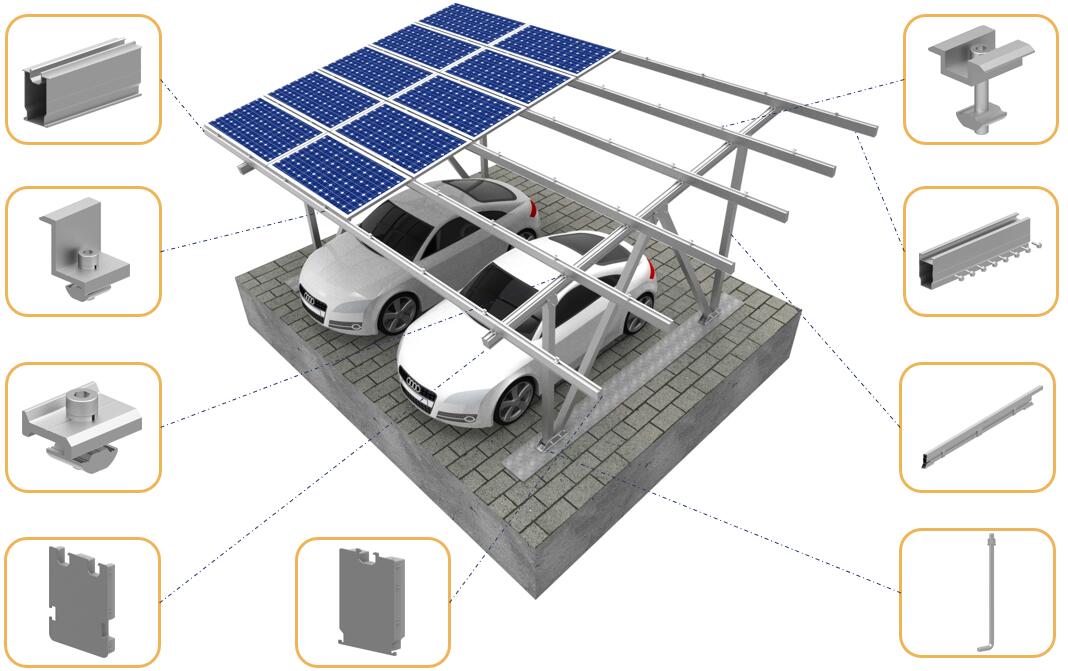

System Overview


 Advantages

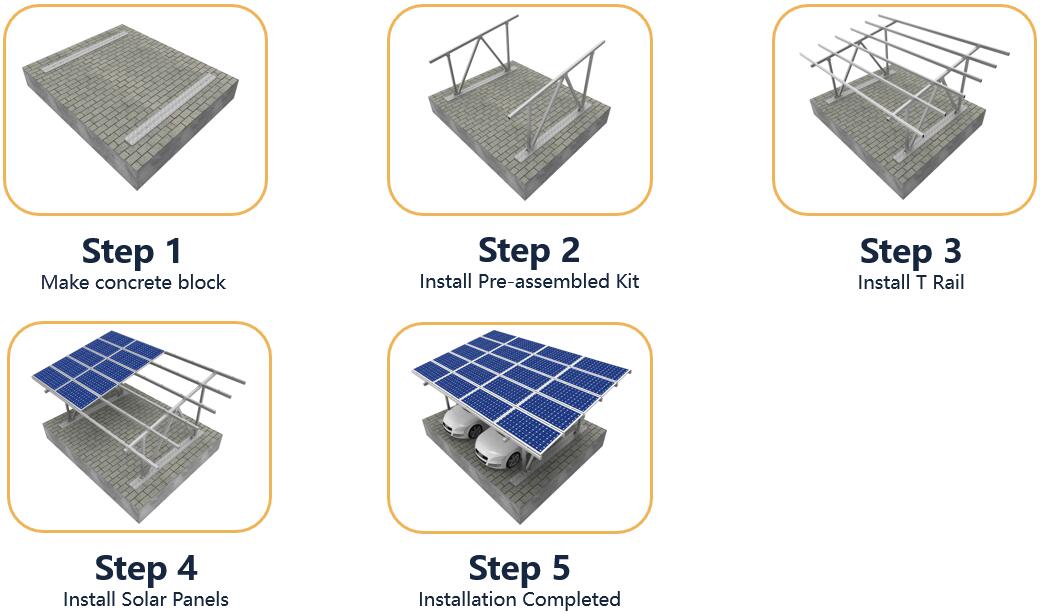

1. Quick Installation: Highly pre-assembled before shipment ensure an quicker installation work

2. Multiple Applications: Serving as a charging station for electrical vehicle while develop a renewable energy for the installers.


3.Enough Sunshine: Reserve enough sunshine(shading rate:30%-40%) to keep the normal grouth of plants.

4.
Safety & Reliability:  Check and test Structure strictly for the use in extreme weather condition


5. 15 Years Warranty: 15 years' warranty, 25 years' life span
