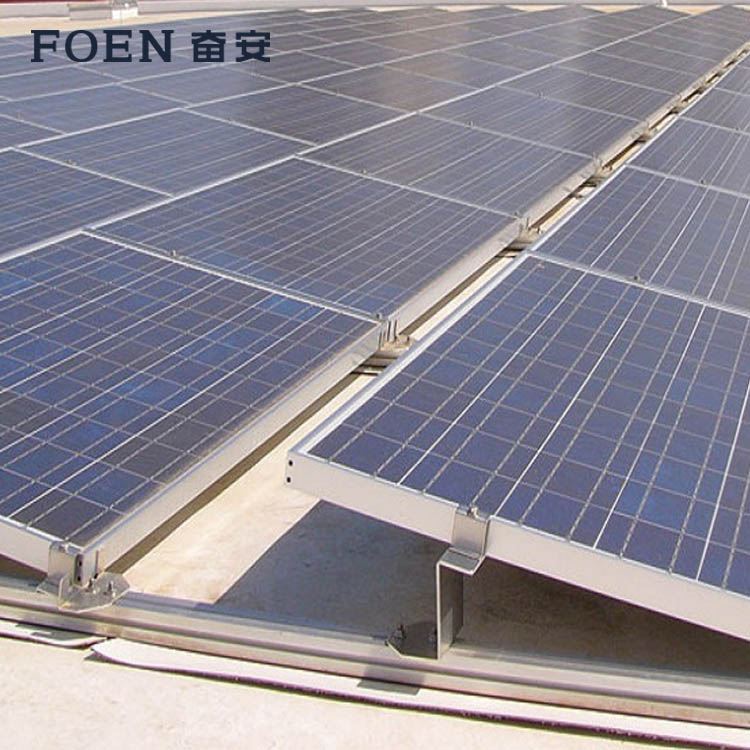

Triangular Mounting System

Triangular Mounting System is specially designed for RC Flat roof projects. It is an adjustable Green Energy Power Station that provides a whole building's Power need.
  • Item No.:

    FA-FR-02
  • Product origin:

    Fujian,China
  • Lead Time:

    15 days
  • Foundation:

    Clamp/Hook
  • Tilt Angle:

    5°~30°
  • Installation Site:

    Ground & Flat Roof
  • Panel Type:

    Framed & Frameless
  • HS Code:

    76109000
  • Product Details

Triangular Mounting System

Triangular Mounting System is specially designed for RC Flat roof projects. It is an adjustable Green Energy Power Station that provides a whole building's Power need.



Material
   AL 6005-T5/SUS304
Surface Treatment

   Average Anodizing Coating Thickness≥ 12μm Average

Panel Type
   Framed & Frameless
Wind Load
   ≤60m/s
Snow Load
   0.45KN/m2
 Panel Orientation
   Landscape
 Tilt Angle
   5°~30°
Seismic Load
   Lateral seismic factor: Kp=1;  seismic coefficient: Z=1; Use coefficient: I=1
Standards

   JIS C 8955 : 2017

   AS/NZS 1170

   DIN1055

   ASCE/SEI 7-05

   International Building Code: IBC 2009

 Warranty

  15years quality warranty, 25years life span warranty



 Component List

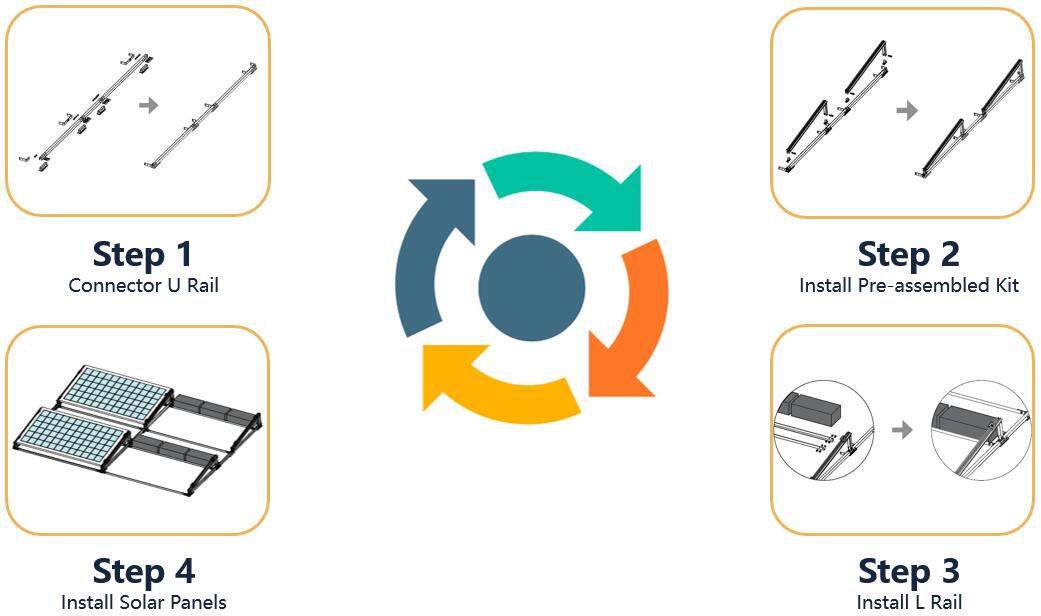

System Overview


 Advantages


1. Quick Installation: Highly pre-assembled before shipment ensure an quicker installation work

2. Safety & Reliability:  Check and test Structure strictly for the use in extreme weather condition


3. Lower Cost : Simpler design and less components make the solution more competitive


4. 15 Years Warranty: 15 years' warranty, 25 years' life span
